Pipe And Tube

• Application
• other, High Pressure Services, Heat Exchangers, Marine Applications, Pulp & Paper

• Bend Radius
• As per standard or custom requirement

• Coating Type
• Bare / Painted / Custom Coating on request

• Color
• Silver / Metallic

• Connection
• Other, Welded / Seamless / Threaded

• Connection Type
• Butt Weld / Socket Weld / Threaded

• Diameter
• 6 mm to 610 mm

• Flexibility
• Rigid

• Length
• Up to 12 meters or custom

• Material

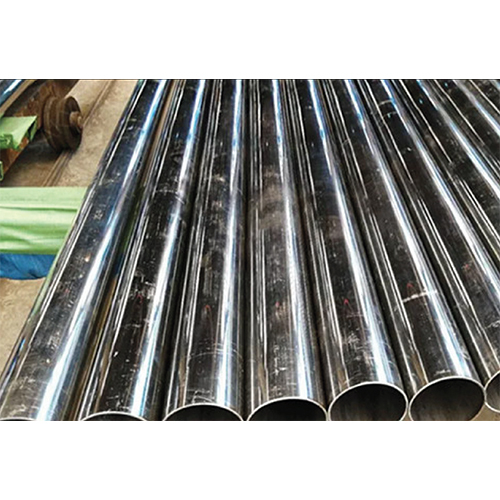

• Other , Duplex Stainless Steel

• Material Grade
• UNS S31803, UNS S32205, S32750, S32760 or as specified

• Outer Diameter
• 6 mm to 610 mm

• Product Type
• Other, Duplex Steel Pipe

• Rated Pressure
• Up to 6000 psi (varies as per size and grade)

• Sealing Type
• Depends on fitting; commonly gasket sealed

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM A789, ASTM A790, ASME SA789, ASME SA790

• Surface Treatment
• Other, Polished / Pickled / Annealed

• Temperature Range
• -50C to +300C (varies by grade)

• Tensile Strength
• 620 MPa min (varies by grade)

• Thickness
• 1 mm to 30 mm

• Thread Type
• NPT / BSP / Custom Threads

• Tolerance
• 2% or as per standard

• Usage
• Industrial / Construction / Oil & Gas Industry / Chemical Processing

• Yield Strength
• 450 MPa min (varies by grade)

• Application
• other, Fluid, Gas and Oil Transmission

• Bend Radius
• Standard

• Coating Type
• Black Painted / Bare / Galvanized

• Color
• Black

• Connection
• Other, Welded / Seamless

• Connection Type
• Butt Weld, Socket Weld

• Diameter
• Various (Customizable)

• Flexibility
• Rigid

• Length
• Up to 12 meters

• Material

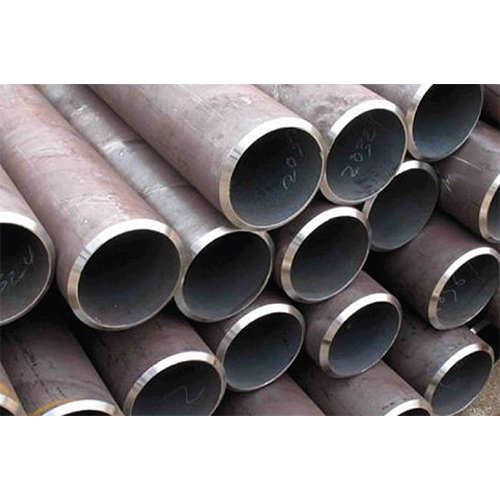

• Carbon Steel

• Material Grade
• A106 Gr.B, ASTM A53 Gr.B

• Outer Diameter
• 1/2 inch to 48 inch

• Product Type
• Other, Carbon Pipe

• Rated Pressure
• Up to 160 bar

• Sealing Type
• Metal-to-Metal

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM / ASME A53 / API 5L

• Surface Treatment
• Galvanized

• Temperature Range
• -29C to 427C

• Tensile Strength
• 415 MPa (min)

• Thickness
• 2 mm to 20 mm

• Thread Type
• NPT / BSP

• Tolerance
• 0.05 mm

• Usage
• Industrial, Construction, Oil & Gas

• Yield Strength
• 240 MPa (min)

• Application
• other, Heat Exchangers, Condenser Tubes, Oil & Gas, Chemical, Power Plant

• Bend Radius
• As per Requirement

• Coating Type
• Uncoated

• Color
• Silver

• Connection
• Other, Plain End / Customized

• Connection Type
• Butt Weld / Socket Weld / Threaded

• Diameter
• 6 mm to 200 mm

• Flexibility
• Rigid

• Length
• Fixed Lengths / Custom Cut

• Material
• Nickel

• Material Grade
• Nickel 200 / Nickel 201

• Outer Diameter
• 6 mm to 200 mm

• Product Type
• Other, Nickel Tube

• Rated Pressure
• High Pressure

• Sealing Type
• Metal to Metal

• Section Shape
• Other, Hollow Cylinder

• Shape
• Round

• Standard
• Other, ASTM B163 / B167 / B161

• Surface Treatment
• Other, Bright Annealed

• Temperature Range
• Up to 600C

• Tensile Strength
• > 480 MPa

• Thickness
• 0.5 mm to 5 mm

• Thread Type
• NPT / BSP (on request)

• Tolerance
• 0.05 mm

• Usage
• Industrial / Chemical Processing

• Yield Strength
• ~150 MPa

• Application
• other, Petrochemical, Chemical, Marine Engineering

• Bend Radius
• Varies as per size

• Coating Type
• Uncoated

• Color
• Metallic Silver

• Connection
• Other, Welded / Seamless

• Connection Type
• Butt Weld / Plain End / Threaded

• Diameter
• Custom as per requirement

• Flexibility
• Rigid

• Length
• Up to 12 meters

• Material

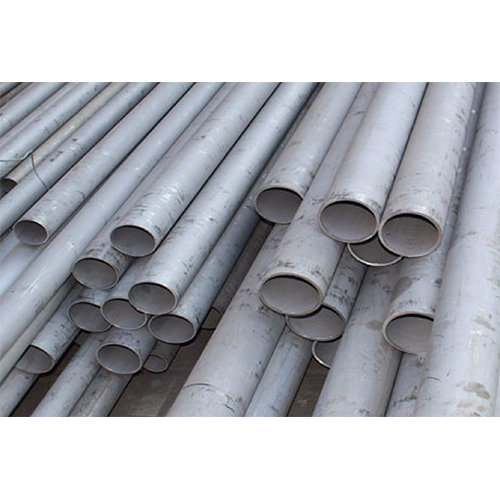

• Other , Hastelloy C-22

• Material Grade
• UNS N06022

• Outer Diameter
• 6 mm - 219 mm

• Product Type
• Other, Tube

• Rated Pressure
• High Pressure

• Sealing Type
• Metal to Metal

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM B622, ASTM B619, ASTM B626

• Surface Treatment
• Other, Bright Annealed / Pickled

• Temperature Range
• -40C to 400C

• Tensile Strength
• 690 MPa min

• Thickness
• 0.5 mm - 25 mm

• Thread Type
• NPT / BSP

• Tolerance
• 0.05 mm

• Usage
• Corrosive Service, Chemical Processing

• Yield Strength
• 310 MPa min

• Application
• other, Heat Exchangers, Condensers, Furnace Components, Petrochemical Equipment

• Bend Radius
• As per pipe diameter and project requirement

• Coating Type
• None/Custom Available (FBE, PE, Epoxy on request)

• Color
• Metallic Silver / Grey

• Connection
• Other, Welded, Seamless

• Connection Type
• Plain End, Beveled End, Threaded End

• Diameter
• Up to 610 mm

• Flexibility
• Rigid

• Length
• Single Random, Double Random, Cut Length (up to 6m or as per requirement)

• Material

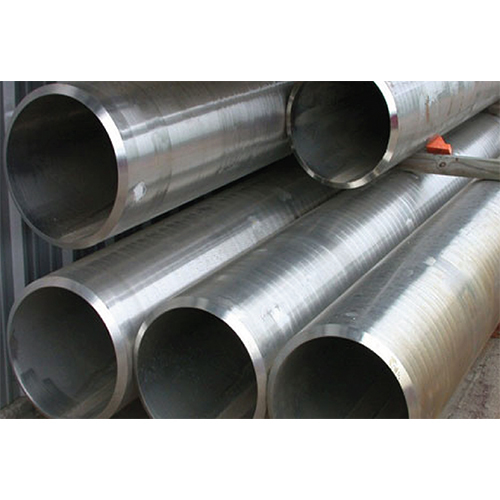

• Other , Incoloy Alloy (Nickel-Iron-Chromium)

• Material Grade
• Incoloy 800, 800H, 800HT, 825, 925, 330, or as specified

• Outer Diameter
• 1/2 to 24 (12.7 mm to 610 mm)

• Product Type
• Other, Incoloy Pipe

• Rated Pressure
• Up to Class 2500 (Depends on size, thickness & grade)

• Sealing Type
• Metal-to-Metal

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM B163, ASTM B407, ASME SB163, ASME SB407

• Surface Treatment
• Other, Polished, Annealed, Pickled, Cold Drawn

• Temperature Range
• -196C to 870C

• Tensile Strength
• 550 MPa min (varies by grade)

• Thickness
• Sch 10S, 40S, 80S, 160 or Customized

• Thread Type
• NPT, BSPT, as required

• Tolerance
• 5% / As per ASTM B163/B407 / customer specification

• Usage
• Industrial, Chemical Processing, Oil & Gas, Power Generation

• Yield Strength
• 220 MPa min (varies by grade)

• Application
• other, Heat Exchangers, Condensers, Piping Systems

• Bend Radius
• As per ASTM B165

• Coating Type
• Uncoated / Custom Coating Available

• Color
• Silver / Metallic

• Connection
• Other, Welded / Seamless

• Connection Type
• Butt Weld / Threaded

• Diameter
• 6 mm - 350 mm

• Flexibility
• Rigid

• Length
• Up to 6 meters (Customizable)

• Material
• Other , Monel Alloy

• Material Grade
• Monel 400 / Monel K500

• Outer Diameter
• 6 mm - 350 mm

• Product Type
• Other, Pipe

• Rated Pressure
• Up to 6000 PSI

• Sealing Type
• Metal-to-Metal

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM B165 / ASTM B725

• Surface Treatment
• Other, Polished / Annealed

• Temperature Range
• -196C to +800C

• Tensile Strength
• 550 MPa min

• Thickness
• 1 mm - 20 mm

• Thread Type
• NPT/BSPT (for threaded pipes)

• Tolerance
• 0.05 mm

• Usage
• Chemical, Petrochemical, Marine, Oil & Gas

• Yield Strength
• 170 MPa min

• Application
• other, Chemical, Aerospace, Marine, Medical

• Bend Radius
• Standard

• Color
• Silver Grey

• Connection
• Other, Welded / Seamless

• Connection Type
• Butt Weld / Socket Weld

• Diameter
• Up to 219 mm

• Flexibility
• Rigid

• Length
• 1 Meter to 6 Meter

• Material

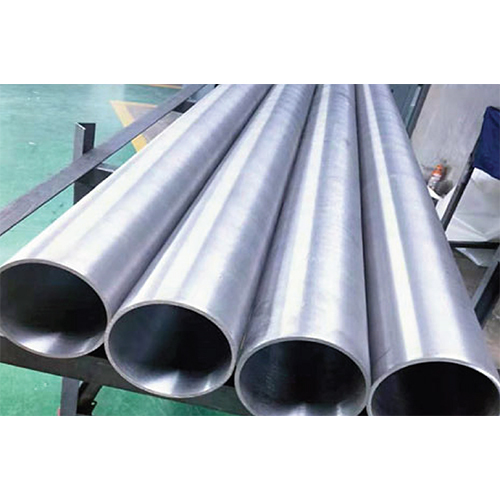

• Titanium

• Material Grade
• GR.2 / GR.5

• Outer Diameter
• 6 mm - 219 mm

• Product Type
• Other, Seamless Titanium Pipe

• Rated Pressure
• High Pressure

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Round

• Standard
• Other, ASTM B338 / B861

• Surface Treatment
• Other, Polished

• Temperature Range
• -200C to 400C

• Tensile Strength
• min 345 MPa

• Thickness
• 1 mm - 20 mm

• Tolerance
• 0.1 mm

• Usage
• Industrial

• Yield Strength
• min 275 MPa

• Application
• other, Plumbing, Structural, Water Supply, Gas Pipe

• Bend Radius
• Standard as per applicable code

• Coating Type
• Galvanized, Black Paint

• Color
• Black

• Connection
• Other, Welded, Seamless

• Connection Type
• Socket Welded, Threaded, Flanged

• Diameter
• Custom/Standard as required

• Flexibility
• Rigid

• Length
• 6 Meter, 12 Meter or Custom

• Material

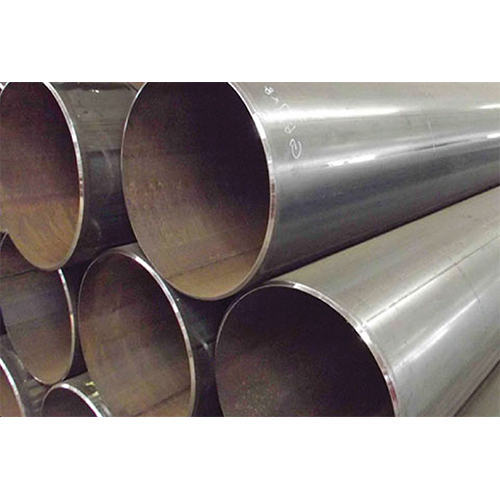

• Mild Steel

• Material Grade
• IS 1239, IS 3589, ASTM A106, ASTM A53

• Outer Diameter
• 15 mm to 500 mm

• Product Type
• Other, Mild Steel Pipe

• Rated Pressure
• Up to 40 bar

• Sealing Type
• Threaded or Welded Joint

• Section Shape
• Round

• Shape
• Round

• Standard
• Other, ASTM, IS, DIN, JIS, BS

• Surface Treatment
• Other, Black Painted, Galvanized, Oiled

• Temperature Range
• -20C to 350C

• Tensile Strength
• 330 MPa to 580 MPa

• Thickness
• 2 mm to 12 mm

• Thread Type
• NPT, BSP as applicable

• Tolerance
• 1% to 3%

• Usage
• Industrial, Construction, Water, Gas, Oil pipe line

• Yield Strength
• 195 MPa to 250 MPa
